MiniSKiiP®
The MiniSKiiP is the ultimate power module platform for motor drives, with a complete portfolio covering all drive power ratings using four module housings. A unique SKiiP Technology pressure system coupled with proven SPRiNG Technology contacts provides fast assembly, reliability, and serviceability.As opposed to conventional solder or press-fit modules requiring specialized equipment (automated presses, wave-soldering machines), no dedicated tools are needed for MiniSKiiP assembly. Instead, one or two screws connect everything from driver PCB to heatsink.The MiniSKiiP line is equipped with the latest IGBT chipsets from multiple suppliers, ensuring performance and supply chain safety
Application:
-Motor drives - Green hydrogen - UPS system- Power suppliers
Housing:
-MiniSkiiP 0 - MiniSkiiP 1 - MiniSkiiP 2
-MiniSKiiP 2 Dual - MiniSKiiP 3 - MiniSKiiP 3 Dual
Below is the homepage of Semikron showing data sheet of each IGBT module.
https://www.semikron-danfoss.com/products/power-modules/power-modules-by-product-line/miniskiip?tab=products

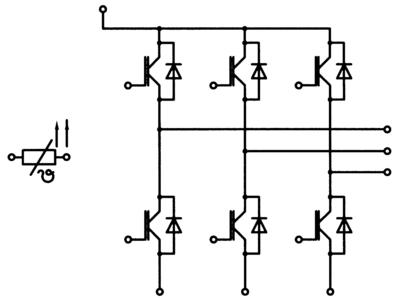

MiniSKiiP® IGBT Topology

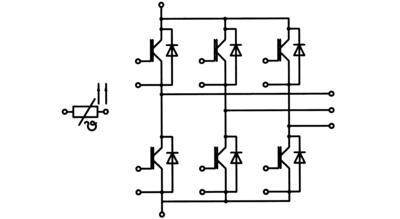

 6 NAC |

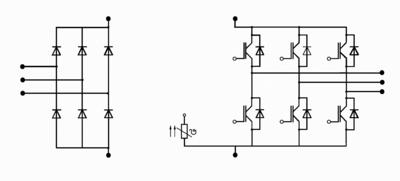

6 NEC |

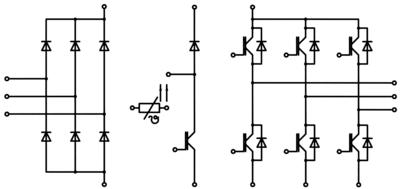

6 AC |

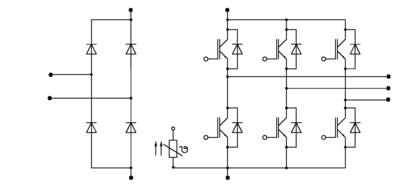

7 NEB |

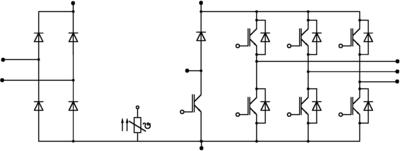

7 NAB |

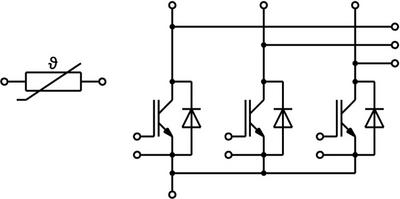

6 AC-1 |

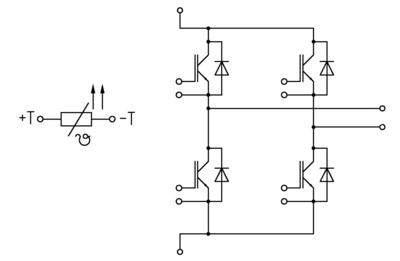

GB |

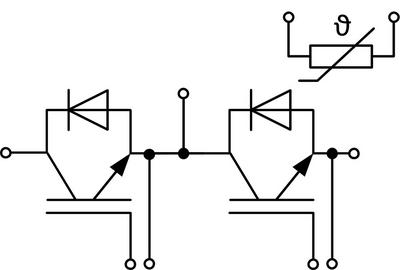

GH | GA |
MiniSKiiP® IGBT Models
Housing | Model |
MiniSKiiP II 0 (34x31x16)
| 600V series： SKiiP01NAC066V3 SKiiP01NEC066V3 SKiiP02AC066V1 SKiiP02NAC066V3 SKiiP02NEB066V3 SKiiP02NEC066V3 SKiiP03NEB066V3 SKiiP03NEC066V3 SKiiP04AC066V1 1200V series： SKiiP02NAC12T4V1 SKiiP03NAC12T4V1 SKiiP03AC126V1 |
MiniSKiiP II 1 (42x40x16)
| 600V series： SKiiP11NAB065V1 SKiiP11NAB066V1 SKiiP12NAB065V1 SKiiP12NAB066V1 SKiiP13NAB065V1 SKiiP13NAB066V1 SKiiP14AC065V1 SKiiP14NAB065V1 SKiiP14NAB066V1 SKiiP15AC065V1 SKiiP15AC066V1 SKiiP16GH066V1 1200V series： SKiiP10NAB12T4V1 SKiiP11AC126V10 SKiiP11AC12T4V1 SKiiP11AC126V1 SKiiP11NAB12T4V1 SKiiP11NAB126V1 SKiiP12AC12T4V1 SKiiP12AC126V1 SKiiP12NAB12T4V1 SKiiP12NAB126V1 SKiiP13AC12T4V1 SKiiP13AC126V1 SKiiP13AC126V20 |
MiniSKiiP II 2 (59x52x16)
| 600V series： SKiiP25NAB066V1 SKiiP25NEB066V1 SKiiP26AC066V1 SKiiP26NAB066V1 SKiiP27AC066V1 SKiiP27GH066V1 SKiiP28AC065V1 SKiiP28AC066V1 SKiiP28GH066V1 650V series： SKiiP26MLI07E3V1 SKiiP27MLI07E3V1 SKiiP24GB07E3V1 SKiiP28MLI07E3V1 SKiiP26GB07E3V1 1200V series： SKiiP23AC12T4V1 SKiiP23AC126V1 SKiiP23ACC12T4V10 SKiiP23NAB12T4V1 SKiiP23NAB12T4V2 SKiiP23NAB12T4V10 SKiiP23NAB126V1 SKiiP23NAB126V10 SKiiP24AC12T4V1 SKiiP24AC126V1 SKiiP24ACC12T4V10 SKiiP24NAB12T4V1 SKiiP24GB12T4V1 SKiiP24NAB12T4V4 SKiiP24NAB12T4V10 SKiiP24NAB126V1 SKiiP24NAB126V10 SKiiP25AC12T4V1 SKiiP25AC12T4V25 SKiiP25AC126V1 SKiiP26AC12T4V1 SKiiP26AC126V1 SKiiP26GH12T4V11 SKiiP26GB12F4V1 SKiiP26GB12T4V1 SKiiP28TMLI12F4V1 SKiiP29TMLI12F4V1 1700V series： SKiiP24NAB176V1 SKiiP22GB17E4V1 SKiiP24GB17E4V1 |
MiniSKiiP II 3 (82x59x16)
| 600V series： SKiiP37NAB065V1 SKiiP37NAB066V1 SKiiP38NAB066V1 SKiiP39AC065V2 SKiiP39AC066V4 650V series： SKiiP39MLI07E3V1 SKiiP38GB07E3V1 1200V series： SKiiP34NAB12T4V1 SKiiP35NAB12T4V1 SKiiP35NAB126V1 SKiiP35NAB126V10 SKiiP36NAB126V1 SKiiP36NAB126V10 SKiiP37AC12T4V1 SKiiP37AC126V2 SKiiP37NAB12T4V1 SKiiP37NAB12T4V10 SKiiP38AC12T4V1 SKiiP38NAB12T4V1 SKiiP38AC126V2 SKiiP38GB12E4V1 SKiiP39AC126V2 SKiiP39AC126V20 SKiiP39AC12T4V1 SKiiP39AC12T4V10 SKiiP39AC12T4V21 SKiiP39GA12T4V1 SKiiP39MLI12T4V1 SKiiP39TMLI12T4V2 SKiiP39GB12E4V1 SKiiP39GB12VV1 1700V series： SKiiP34NAB176V3 SKiiP38AC176V2 SKiiP36GB17E4V1 SKiiP38GB17E4V1 |
