SEMiX Module
The SEMIX 3 Press-fit is the industry standard medium power half-bridge module. With a standard four-hole mounting footprint and 17mm height, this module is commonplace across many industries in 2- and 3-level power converters. The SEMiX 3 Press-Fit features robust molded power terminals, press-fit pins for reliable solder-free driver connection and an option for shunt resistors for easy current monitoring.
Application:
-Motor drives - Wind and solar energy - UPS system- Power suppliers - EV chargers
Below is the homepage of Semikron showing data sheet of each IGBT module.
https://www.semikron-danfoss.com/products/power-modules/power-modules-by-product-line
SEMiX® IGBT Topology
GB |

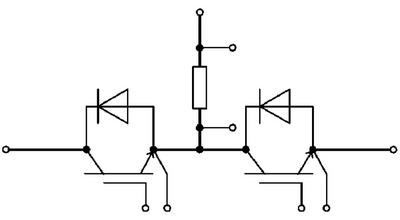

GB（with shunt） |  GAL |
GAR |

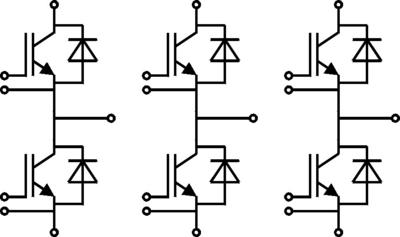

GD 3 phase full bridge |
MLI3-level |

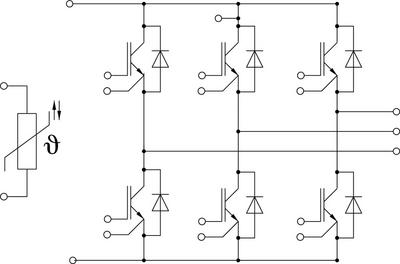

GD ( with NTC) |
GD ( 3 half bridge ) |
Housing | Topology | Model |

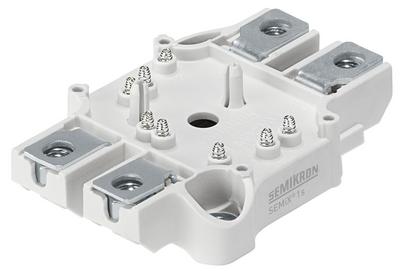

SEMiX 1s (84x64x17)
| GB | 1200V series：SEMiX151GB12E4s SEMiX151GB12Vs 1700V series：SEMiX151GB17E4s |
GAL | 1200V series： SEMiX151GAL12E4s SEMiX151GAL12Vs | |
GAR | 1200V series： SEMiX151GAR12E4s | |

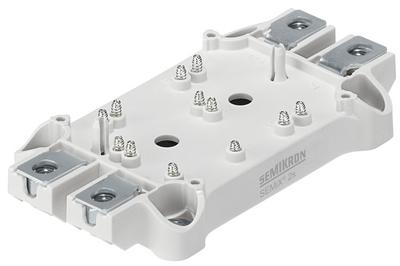

SEMiX 2s (117x64x17)
| GB | 600V series： SEMiX202GB066HDs SEMiX302GB066HDs SEMiX402GB066HDs 1200V series：SEMiX252GB126HDs SEMiX202GB12E4s SEMiX202GB12Vs SEMiX302GB126HDs SEMiX302GB12E4s SEMiX302GB12Vs SEMiX452GB126HDs 1700V series：SEMiX252GB176HDs SEMiX202GB17E4s SEMiX302GB176HDs SEMiX302GB17E4s SEMiX452GB176HDs
|
GAL | 600V series： SEMiX402GAL066HDs 1200V series： SEMiX302GAL12E4s SEMiX452GAL126HDs 1700V series： SEMiX302GAL17E4s | |
GAR | 600V series： SEMiX402GAR066HDs 1200V series：SEMiX302GAR12E4s | |

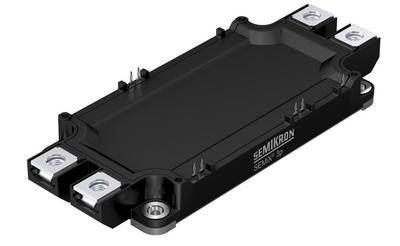

SEMiX 3p (150x62x17)
| GB | 650V series： SEMiX453GB07E3p 1200V series：SEMiX223GB12E4p SEMiX303GB12E4p SEMiX453GB12E4p.pdf SEMiX603GB12E4p 1700V series：SEMiX453GB17E4p SEMiX603GB17E4p |
SEMiX 3p shunt (150x62x17)
| GB ( shunt) | 1200V series：SEMiX453GB12E4Ip SEMiX603GB12E4Ip 1700V series：SEMiX453GB17E4Ip |

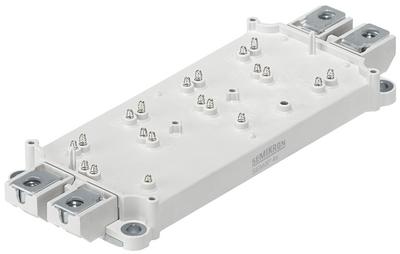

SEMiX 3s (150x64x17)
| GB | 600V series： SEMiX603GB066HDs 1200V series：SEMiX223GB12Vs SEMiX353GB126HDs SEMiX303GB12E4s SEMiX303GB12Vs SEMiX503GB126HDs SEMiX453GB12E4s SEMiX453GB12Vs SEMiX703GAL126HDs SEMiX703GB126HDs SEMiX603GB12Vs 1700V series：SEMiX353GB176HDs SEMiX303GB17E4s SEMiX453GB176HDs SEMiX453GB17E4s SEMiX653GB176HDs |
GAL | 600V series： SEMiX603GAL066HDs 1200V series：SEMiX453GAL12E4s 1700V series：SEMiX453GAL17E4s SEMiX653GAL176HDs | |
GAR | 600V series： SEMiX603GAR066HDs 1200V series：SEMiX453GAR12E4s SEMiX703GAR126HDs 1700V系列：SEMiX653GAR176HDs | |
SEMiX 4s (183x69x17)
| GB | 1200V： SEMiX404GB12E4s SEMiX404GB12Vs SEMiX604GB126HDs SEMiX604GB12E4s SEMiX604GB12Vs SEMiX904GB126HDs 1700VSEMiX404GB17E4s SEMiX604GB176HDs SEMiX604GB17E4s SEMiX854GB176HDs |
GAL | 1200V series： SEMiX604GAL12E4s | |
GAR | 1200V series： SEMiX604GAR12E4s | |

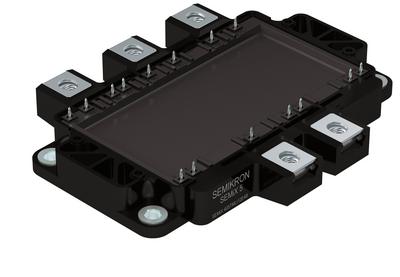

SEMiX 5p (130x70x17)
| MLI 3-level | 650V： SEMiX155MLI07E4 SEMiX205MLI07E4 SEMiX305MLI07E4 SEMiX405MLI07E111200V： SEMiX155MLI12E4 SEMiX205MLI12E4 SEMiX205TMLI12E4B SEMiX305MLI12E4 SEMiX305TMLI12E4B SEMiX405TMLI12E4B 1700V series： SEMiX305TMLI17E4C |
GD 6pack ( NTC) | 650V series： SEMiX305GD07E4 1200V series：SEMiX105GD12T4 SEMiX155GD12T4 SEMiX205GD12E4 1700V series：SEMiX155GD17E4 | |

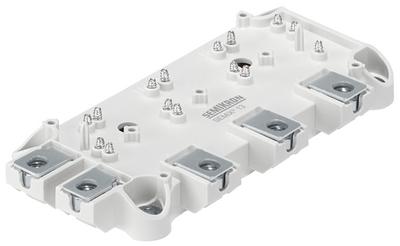

SEMiX 13 (138x71x17)
| GD six ( full bridge) | 600V series： SEMiX101GD066HDs SEMiX151GD066HDs SEMiX201GD066HDs 1200V series： SEMiX71GD12E4s SEMiX101GD126HDs SEMiX101GD12E4s SEMiX101GD12Vs SEMiX151GD126HDs SEMiX151GD12E4s SEMiX151GD12Vs SEMiX251GD126HDs |
SEMiX 33c (150x163x17)
| GD six (apart) | 1200V series：SEMiX223GD12E4c SEMiX223GD12Vc SEMiX353GD126HDc SEMiX303GD12E4c SEMiX303GD12Vc SEMiX503GD126HDc SEMiX453GD12E4c SEMiX453GD12Vc SEMiX703GD126HDc 1700V series：SEMiX353GD176HDc SEMiX453GD176HDc SEMiX453GD17E4c SEMiX653GD176HDc |
