SEMITRANS® Classic
The SEMITRANS Classic line represents the most well-established IGBT power module design in the industry. With a huge portfolio from 600V to 1700V, the SEMITRANS
Classic covers robust high current IGBT chipsets as well as the latest fast switching types. Multiple source IGBTs, CAL
diodes, and SiC MOSFETS are configured in half-bridge circuits and their variants for the design of medium power industrial converters. This product line features the well-known 62mm (SEMITRANS 3) and 34mm (SEMITRANS 2) IGBT modules that are at the core of many power converters. With decades of market experience, the SEMITRANS Classic packages deliver a proven design.
Applications
Motor drives - Solar and energy storage systems - UPS systems - Green hydrogen - Power supplies
Housing
SEMITRANS 2 - SEMITRANS 3 - SEMITRANS 4 - SEMITRANS 5 - SEMITRANS 6
Below is the homepage of Semikron showing data sheet of each IGBT module.
https://www.semikron-danfoss.com/products/power-modules/power-modules-by-product-line/semitrans-classic?tab=products
SEMITRANS® IGBT Topology
GB Dual |
GAL single switch |
GAR single switch |
GA one |

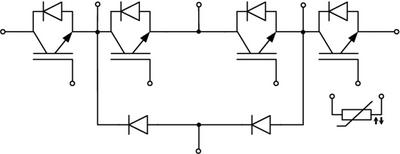

MLI 3 level |
GD sixpack |
SEMITRANS® IGBT model
Housing | Topology | Model |

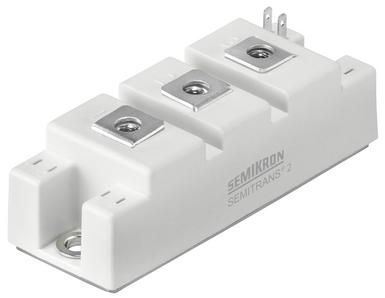

SEMITRANS 2 (94x34x30)
| GB Dual | 600V 650V series： SKM50GB063D SKM75GB063D SKM100GB063D SKM145GB066D 1200V series SKM50GB12T4 SKM50GB12V SKM75GB12T4 SKM75GB12V SKM100GB12T4 SKM100GB12V SKM150GB12T4 SKM150GB12V SKM195GB126D 1700V series SKM75GB17E4 SKM100GB17E4 SKM75GB176D SKM150GB17E4 SKM145GB176D |
GAL | 600V、650V series：SKM75GAL063D SKM195GAL07E3 1200V series SKM50GAL12T4 SKM100GAL12T4 SKM150GAL12T4 SKM150GAL12V 1700V series：SKM100GAL17E4 SKM145GAL176D | |
GAR | 600V、650V series：SKM195GAR07E3 SKM75GAR063D 1200V series：SKM150GAR12T4 SKM150GAR12V SKM195GAL126D 1700V series：SKM100GAR17E4 | |

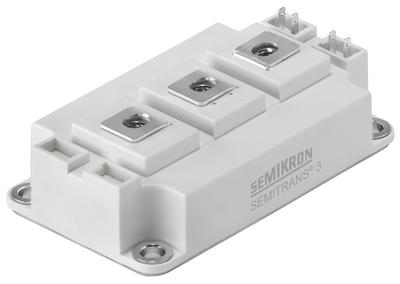

SEMITRANS 3 (106x62x31)
| GB Dual | 600V、650V series：SKM200GB063D SKM300GB063D SKM300GB066D SKM400GB066D SKM600GB066D SKM300GB07E3 SKM400GB07E3 SKM600GB07E3 1200V： SKM100GB12T4G SKM150GB12VG SKM150GB12T4G SKM200GB125D SKM200GB126D SKM200GB12E4 SKM200GB12V SKM200GB12T4 SKM300GB126D SKM300GB125D SKM300GB12E4 SKM300GB12T4 SKM400GB125D SKM400GB126D SKM300GB12V SKM400GB12E4 SKM400GB12V SKM400GB12T4 SKM450GB12E4 SKM450GB12T4 SKM600GB126D 1700V： SKM150GB17E4G SKM200GB17E4 SKM150GB17E4GH16 SKM300GB17E4 SKM200GB176D SKM400GB17E4 SKM300GB17E4H16 SKM400GB176D |
GAL | 600V、650V series：SKM300GAL07E3 SKM300GAL063D 1200V： SKM200GAL125D SKM200GAL12E4 SKM200GAL126D SKM200GAL12T4 SKM300GAL12E4 SKM300GAL12T4 SKM400GAL126D SKM400GAL125D SKM400GAL12E4 SKM400GAL12T4 SKM400GAL12V SKM600GAL126D 1700V：SKM200GAL176D SKM400GAL17E4 SKM200GAL17E4 SKM400GAL176D | |
GAR | 600V、650V series： SKM300GAR063D SKM300GAR07E3 1200V ：SKM200GAR12E4 SKM300GAR12E4 SKM200GAR125D SKM400GAR12E4 SKM400GAR125D SKM400GAR12V SKM400GAR12T4 | |

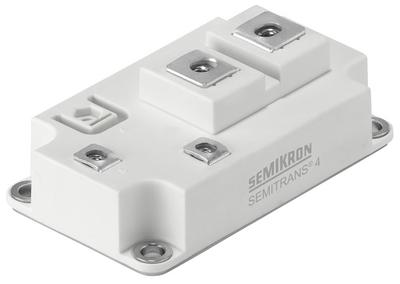

SEMITRANS 4 (106x62x37)
| GA one | 1200V series： SKM300GA12E4 SKM300GA12T4 SKM300GA12V SKM400GA12E4 SKM400GA12T4 SKM400GA12V SKM600GA125D SKM600GA126D SKM600GA12E4 SKM600GA12T4SKM600GA12V SKM800GA125D SKM800GA126D SKM900GA12E4 1700V series： SKM600GA176D SKM600GA17E4 SKM800GA176D |

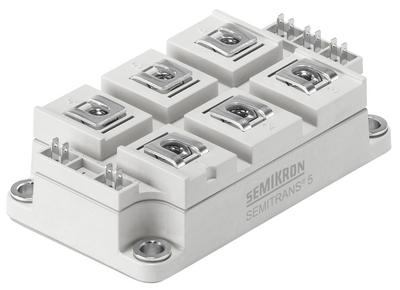

SEMITRANS 5 (106x62x31)
| MLI 3 level | 600V series： SKM200MLI066TAT SKM150MLI066TAT SKM300MLI066TAT |

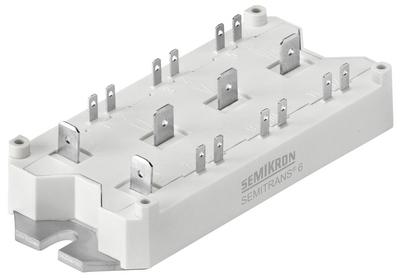

SEMITRANS 6 (105x45x18)
| GD sixpack | 1200V series： SKM25GD125D SKM50GD125D |
