SEMITOP® Module


The SEMITOP Classic line offers a baseplate-less design with a 12 mm height for the low to medium power range. Mounting is accomplished via a single mounting screw and a PCB interface using solder or press-fit pins. Low commutation inductance and the use of the latest silicon and silicon carbide chip technologies make this product suitable for unique and complex circuit topologies with chip blocking voltages up to 1200V.


Application:

-Motor drives - solar energy - ESS - UPS system- Power suppliers


Below is the homepage of Semikron showing data sheet of each IGBT module.

https://www.semikron-danfoss.com/products/power-modules/power-modules-by-product-line/semitop-classic?tab=products


SEMITOP®    IGBT Topology

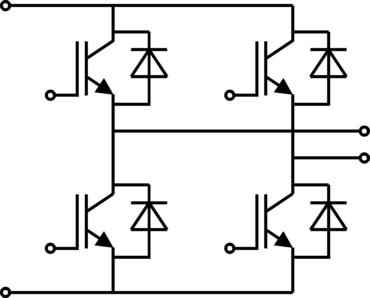

GH

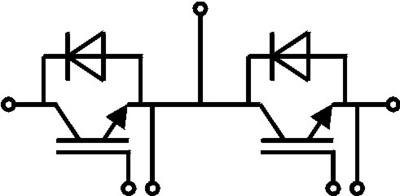

GB

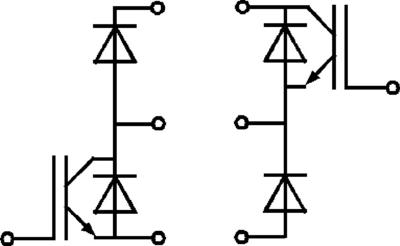

GAL



GAR

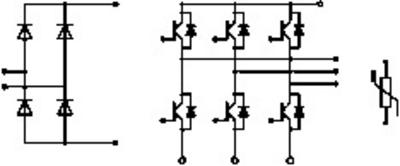

BGD-ET

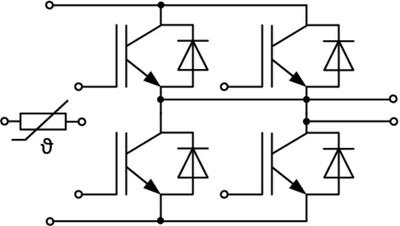

GH-T



MLI   3 level

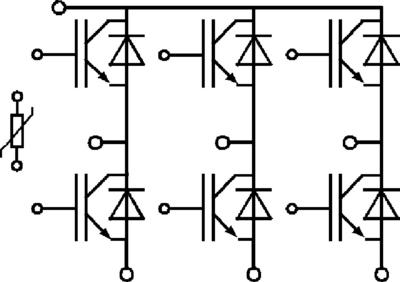

GD-T

(NTC)

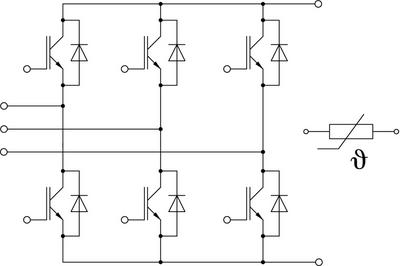

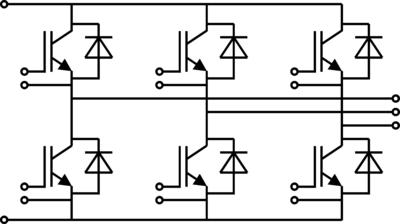

2_20190506090551_lkwhi.jpgGD Sixpack


GD-ET

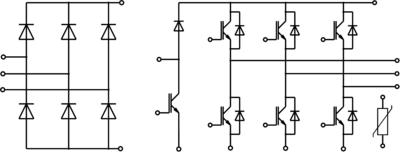

DGD-ET


GBB   H-bridge



GARL

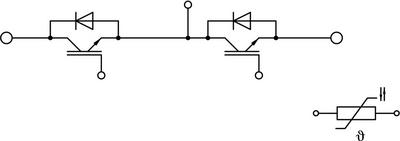

GB-T

(NTC)



DGDL-T

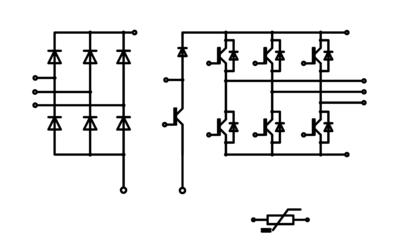

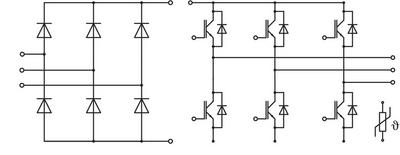

DGDL-ET


                                             SEMITOP®   IGBT Model

Housing

Topology

Model


SEMITOP 2

(41x28x12)


GH H-bridge

600V series: SK15GH063       SK25GH063


GAL

600V series   SK45GAL063     SK50GAL065

1200V seriesSK35GAL12T4   SK60GAL125   SK75GAL12T4


GAR

600V series SK45GAR063     SK50GAR065

1200V seriesSK35GAR12T4   SK60GAR125   SK75GAR12T4


GB

600V series   SK45GB063       SK50GB065

1200V seriesSK25GB12T4     SK35GB12T4











SEMITOP 3

(55x31x12)

BGD-ET


600V seriesSK10BGD065ET   SK9BGD065ET

DGD-ET


600V seriesSK9DGD065ET    SK20DGD065ET

DGDL

600V series SK10DGDL065ET   SK20DGDL066ET   SK30DGDL066ET   SK20DGDL065ET

1200V seriesSK10DGDL12T4ET   SK10DGDL126ET   SK15DGDL12T4ET   SK15DGDL126ET

GD   063


600V series SK13GD063   SK25GD063   SK45GD063


GD-ET

600V series   SK20GD066ET   SK35GD065ET   SK30GD066ET   SK50GD066ET

1200V seriesSK10GD12T4ET   SK10GD126ET   SK15GD12T4ET   SK15GD126ET

                         SK25GD12T4ET   SK25GD126ET   SK35GD12T4ET   SK35GD126ET


MLI 3 level

600V series   SK20MLI066   SK30MLI066   SK50MLI066

GBB H-bridge

600V series SK30GBB066T   SK75GBB066T   SK50GBB066T

GH H-bridge

600V series   SK45GH063   SK50GH065F

1200V seriesSK25GH12T4

GARL

600V series:   SK55GARL065E   SK75GARL065E

GB-T

600V seriesSK75GB066T   SK100GB066T   SK150GB066T

1200V seriesSK50GB12T4T   SK75GB12T4T   SK80GB125T   SK100GB12T4T

GB

600V seriesSK80GB063

1200V seriesSK60GB125



SEMITOP 4

(61x55x12)



DGDL-T

600V series   SK50DGDL066T   SK75DGDL066T   SK100DGDL066T

1200V seriesSK25DGDL12T4T   SK25DGDL126T   SK35DGDL12T4T   SK35DGDL126T

                         SK50DGDL126T   SK50DGDL12T4


GD-T

600V series:   SK75GD066T   SK100GD066T   SK150GD066T   SK200GD066T

1200V seriesSK50GD12T4T   SK50GD126T   SK75GD12T4T   SK75GD126T

                        SK100GD12T4T   SK100GD126T

MLI   3 level

600V seriesSK100MLI066T   SK75MLI066T   SK150MLI066T

GH-T   H-bridge


1200V seriesSK50GH12T4T   SK100GH12T4T
